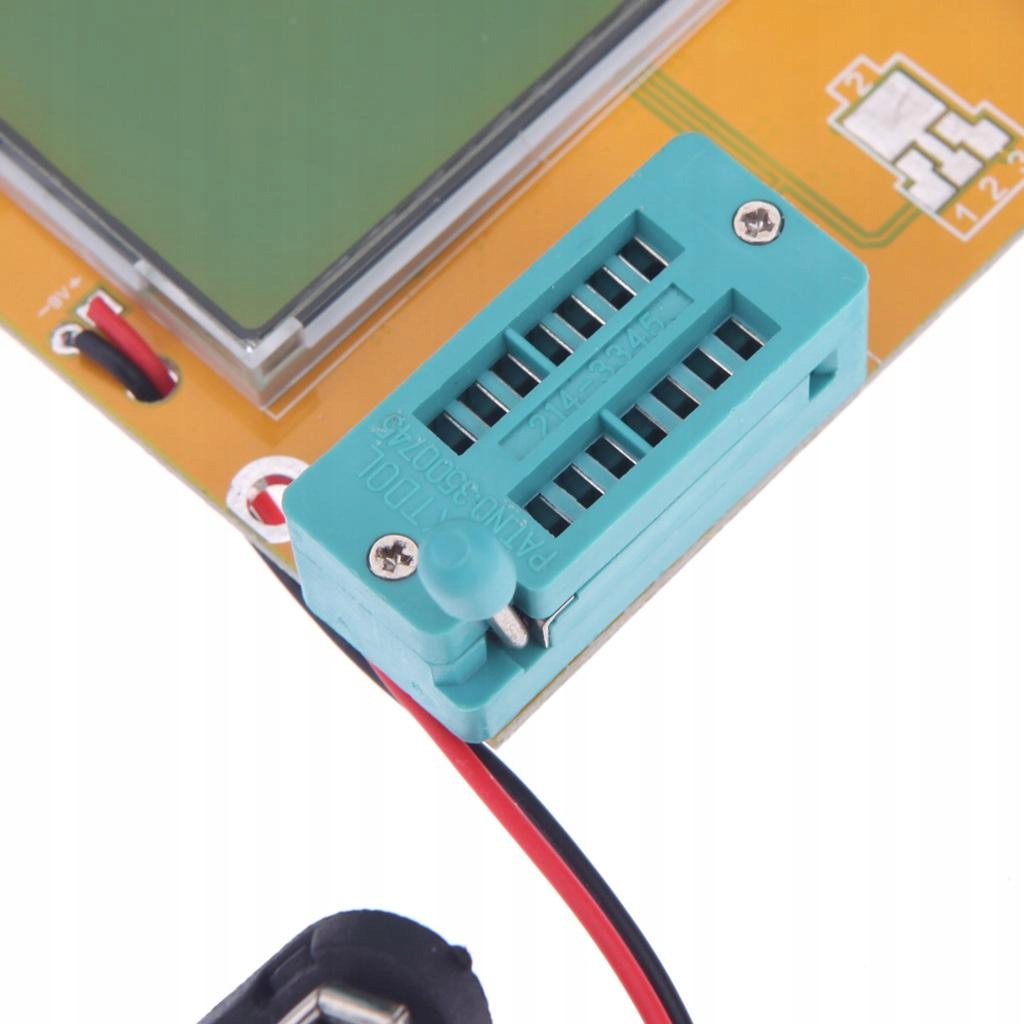

PCB LCD Display Backlight ESR Meter LED Transistor Multifunction Tool

ЖК-дисплей подсветка ESR метр LCR транзисторный тестер диод Триод MOS NPN / PNP
Description:
Powered by 9V layer-built battery, can use 2 li-ion batteries form a 8.4 V battery pack for long time power.
Measuring bipolar transistor current amplification factor and base-emitter threshold voltage.
Automatic test the pin of a component, and display on the 128 * 64 LCD backlight.& amp; nbsp;
Measure the gate and gate capacitance of the MOSFET threshold voltage.
One-button operation, automatic shutdown, only 20nA shutdown current.
Eeverse breakdown voltage is less than 4.5 V, Zener diode can be identified.
2uf more capacitors can simultaneously measure the equivalent series resistance ESR values.
через базовый эмиттер threshold voltage and high current amplification factor to identify Darlington transistors.
can simultaneously measure two resistors and Resistor symbol is displayed. Он был прав с решительным значением 4.& amp; nbsp;
он может обнаружить транзистор, МОП-транзистор защиты диодного усиления coefficient и база для определения излучателя транзистора вперед смещенного напряжения.
Automatic detection of NPN and PNP transistors, N-channel and p-channel MOSFET, diode (including double diode), thyristor, transistor, resistor and capacitor and other components.& amp; nbsp;
& nbsp;
Specification:
материал: PCB
Power Mode: 6F22
Display: 128 * 64 LCD backlight
Testing Speed: 2 seconds (1 minute is normal for large capacitor)
Shutdown Current: 20na&nbsp;
Displayed Value: 25pf-100mF (resolution 1pf)
inductance: 0.01 MH-20h
Resistance: &Le;2100&Omega;
Power Volatge: 9V layer-built Battery / 2 li-Ion batteries form a 8.4 V battery pack
resolution of Resistance measurement: 0.1 ohms
the highest measured value: 50m ohms
provided Testing Current: approx. 6mA
Size: Approx. 7 x 6.3 cm /&nbsp;2.76x2.48inch
 Package Includes:
1 X ESR метр транзисторный тестер
